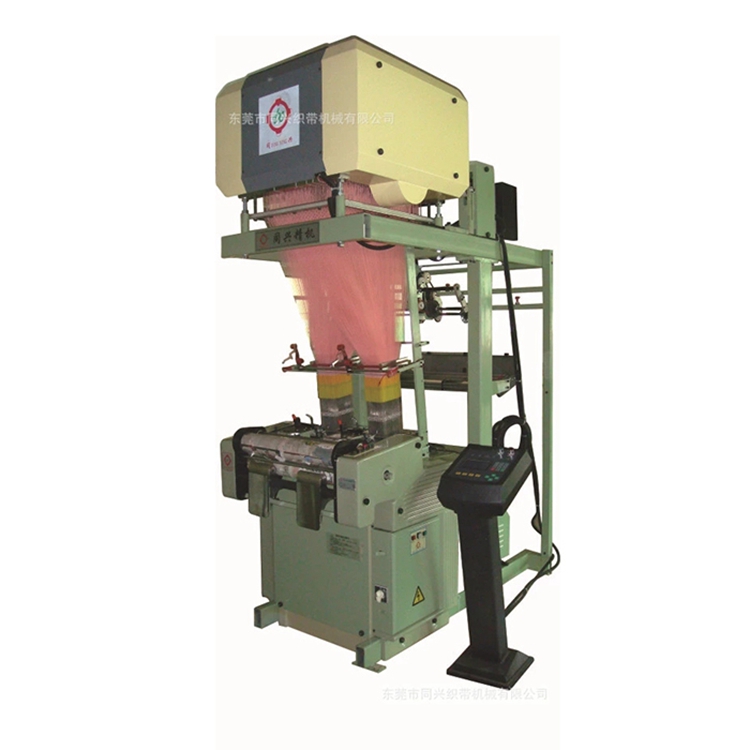

The computerized jacquard machine is a kind of textile machinery for the processing of various types of elastic and non-elastic jacquard fabrics. It features good stability, smooth feeding, easy commissioning and low maintenance frequency. Currently we have 128, 192, 240, 320, 384, 480, 640, 896 and 1280 hooks options for it.
Model: TX2/110, 1280hooks
Category: Computer jacquard machine
Feature: Energy save, easy operation
Payment: T/T,Alibaba Escrow,L/C,Western Union
Scope of supply: -Tool Box -Beam Stand -Change Gear Set -Extra Parts
We are the manufacturer and exporter of Computer Jacquard Machine.We have wide experience in Narrow Fabric Machine. We also offer an extensive range of Computer Jacquard Machine to our clients.This Computer Jacquard Machine is easy to install and operate. These Narrow Fabric Machine are manufactured from optimum quality raw material which is obtained from reliable names of the industry. We make these Narrow Fabric Machine available to the customers in varied sizes and specifications, in order to suit their exact requirements. 1. This jacquard weaving machine uses the lates computer-controlled jacquard head and double speed motor. 2. The jacquard machine adopts link-type rotation instead of the tranditional belt-type rotation to avoid missed stitch caused by loose or broken belt. 3. The weft feeding is conducted by belt. The feeding mechanism features steady speed, long life and low depreciation rate. 4. This jacquard loom adopts toothed belt transmission. It is able to work normally without misplacement when running at a high rotationg speed. 5. The jacquard machine is completely closed to prevent dirt from entering the internal part. So it only requires to be lubricated for a few times a year. 6. USB connection is available. The USB storage and service life are dozens of times more superior than that 7. Stable operation is guaranteed by high quality body parts and advanced electronic control system.
| Spec. \ Model | 2/165 | 2/110 | 4/80 | 6/55 | 8/45 | 8/35 | 10/25 |
|---|---|---|---|---|---|---|---|
| 128Hooks | Optional. | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. |
| 192Hooks | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. |
| 240Hooks | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| 320Hooks | Opt. | Opt. | Opt. | Opt. | Opt. | ||
| 384Hooks | Opt. | Opt. | Opt. | Opt. | Opt. | ||
| 480Hooks | Opt. | Opt. | Opt. | Opt. | |||
| 640Hooks | Opt. | Opt. | Opt. | Opt. | |||
| Machine Width | 610mm | 610mm | 610mm | 610mm | 610mm | 610mm | 610mm |
| Heads/line | 2 | 2 | 4 | 6 | 8 | 8 | 10 |
| Reed width | 165 | 110 | 80 | 55 | 45 | 35 | 25 |
| Shaft frame | 6 | 6 | 8 | 8 | 8 | 8 | 8 |
| Pick repeat | 8-48 | 8-48 | 8-40 | 8-40 | 8-48 | 8-40 | 8-40 |
| Motor power | 2HP | 2HP | 2HP | 2HP | 2HP | 2HP | 2HP |
| R.P.M | 600-800 | 700-900 | 700-900 | 700-900 | 800-1000 | 800-1000 | 800-1000 |
Package: ocean standard Non-fumigation wooden case Net Wegith: 950kgs Gross Weight: 1050kgsMeasurement: 2(L)x1(W)x2(H) cbm
Minimum Order Quantity: 1 SetsPort of Dispatch: Shenzhen or AnyDelivery Time: As per Order
