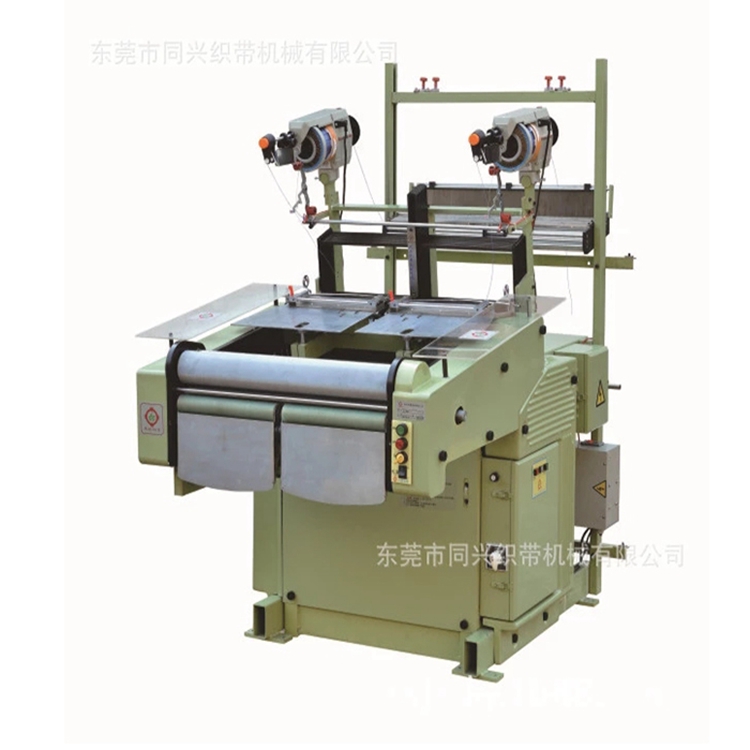

We offer our varied clients with an extensive range of High Speed Needle Looms. These are widely used in the weaving of zipper tapes, shoe laces, elastic tapes, thick nylon webbing, cargo lifting tapes, safety belt and other allied items. Our range of these High Speed Needle Looms are offered at a very competitive price in the market without any compromise on the quality of our product. This product is further described in detail below:
Model: TXF2/200
Category: Needle loom machine
Feature: Energy save, easy operation
Payment: T/T,Alibaba Escrow,L/C,Western Union
Scope of supply: -Tool Box -Beam Stand -Change Gear Set -Extra Parts
We are a well-established organization engaged in offering technically stable Needle Loom Machine. These are based on advanced technology and supreme quality raw material. Our range is extensively used in various industries and acknowledged for high performance and maintenance free features. We provide our range to our clients at industry leading prices and in varied specifications, in order to meet their diverse requirements Purpose: Needle loom machine use to manufacture widened and light narrow fabric such as shoes accessories,PP strap,cotton strap, beach seat tape.The thickness can be selected from 1mm-2.5mm as the width can be selected from 2mm-200mm. Special device: Automatic rubber feeding, weft feeding with belts, Electronic weft feeding device, Double take off roller device.
| Model | Quantity(heads) | Reed Width | Shaft/frame | Pick Range/repeat | Weft Density | R.P.M |
|---|---|---|---|---|---|---|
| TXF2/80 | 2 | 110mm | 12-16 | 8-48 | 3.5-36.7 | 800-1000 |
| TXF2/110 | 2 | 110mm | 12-16 | 8-48 | 3.5-36.7 | 350-400 |
| TXF2/165 | 2 | 110mm | 12-16 | 8-48 | 3.5-36.7 | 350-400 |
| TXF2/200 | 2 | 110mm | 12-16 | 8-48 | 3.5-36.7 | 300-350 |
| TXF2/300 | 2 | 300mm | 12-16 | 8-48 | 3.5-36.7 | 300-350 |
| TXF4/55 | 4 | 55mm | 12-16 | 8-48 | 3.5-36.7 | 800-1000 |
| TXF4/65 | 4 | 65mm | 12-16 | 8-48 | 3.5-36.7 | 800-1000 |
| TXF4/80 | 4 | 80mm | 12-16 | 8-48 | 3.5-36.7 | 800-1000 |
| TXF6/45 | 6 | 45mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF6/55 | 6 | 55mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF8/30 | 8 | 30mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF8/35 | 8 | 35mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF12/17 | 12 | 17mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF12/25 | 12 | 250mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF12/30 | 12 | 30mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
| TXF14/20 | 14 | 20mm | 12-16 | 8-48 | 3.5-36.7 | 1000-1200 |
Package: ocean standard Non-fumigation wooden case Net Wegith: 500kgs Gross Weight: 550kgsMeasurement: 1.3(L)x1(W)x1.9(H) cbm
Minimum Order Quantity: 1 SetsPort of Dispatch: Shenzhen or AnyDelivery Time: As per Order
